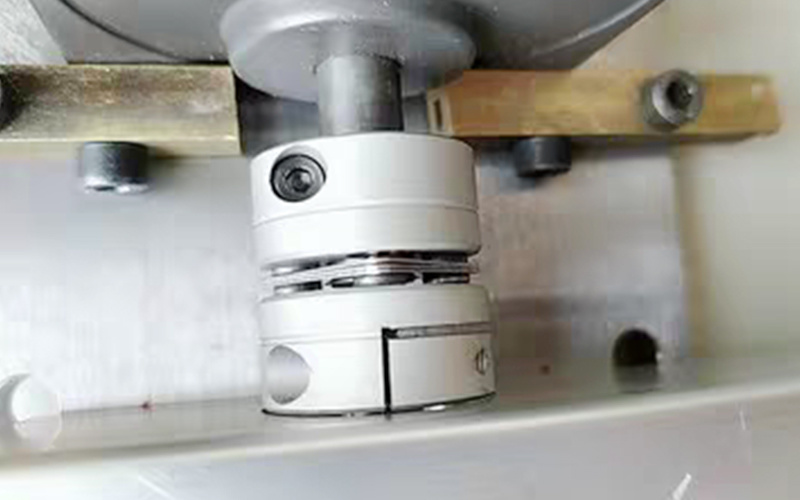

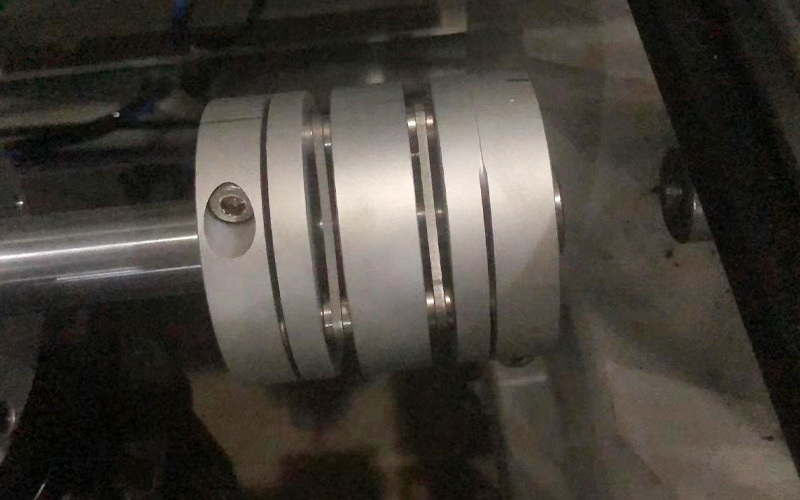

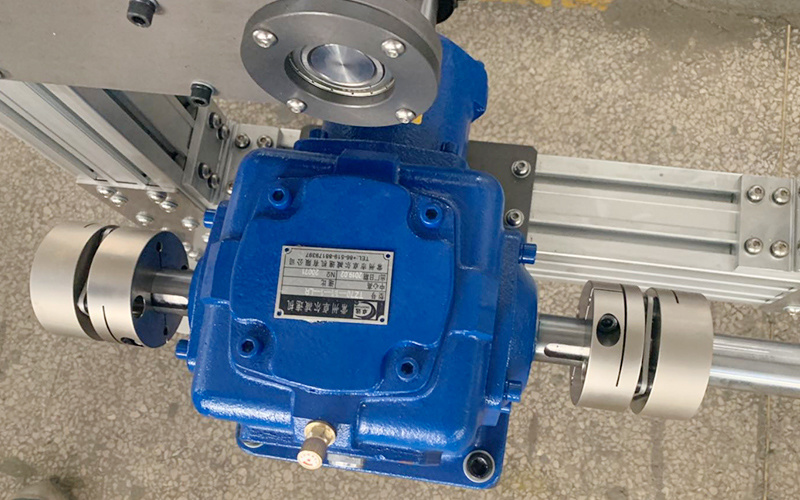

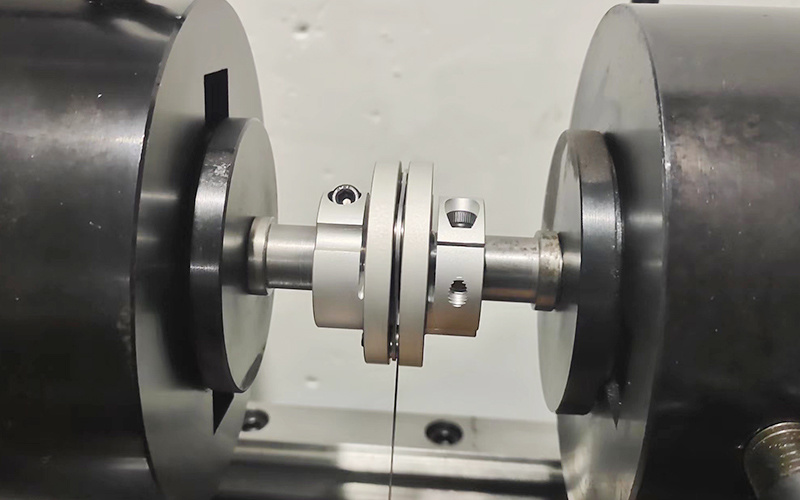

ADC Diaphragm Coupling



ADC Diaphragm Couplings are particularly suitable for use in servo mechanisms. The torsionally rigid diaphragms of this coupling are easily bent to ensure reliable axial, angular and radial deflection correction capabilities. Stainless steel diaphragms and metal bushings enable ADC diaphragm couplings to withstand temperatures up to 200°C and resist corrosion.



Features:

● Ultra-high rigidity, extremely high torsional rigidity, can accurately control the rotation of the shaft, and can carry out high-precision control;

● No backlash, the power transmission is carried out by friction coupling, no backlash, more suitable for ultra-tight control;

● Ultra-low inertia, using high-strength aluminum alloy to directly connect with the shaft, with ultra-low inertia. More suitable for high acceleration operation.



Drive:

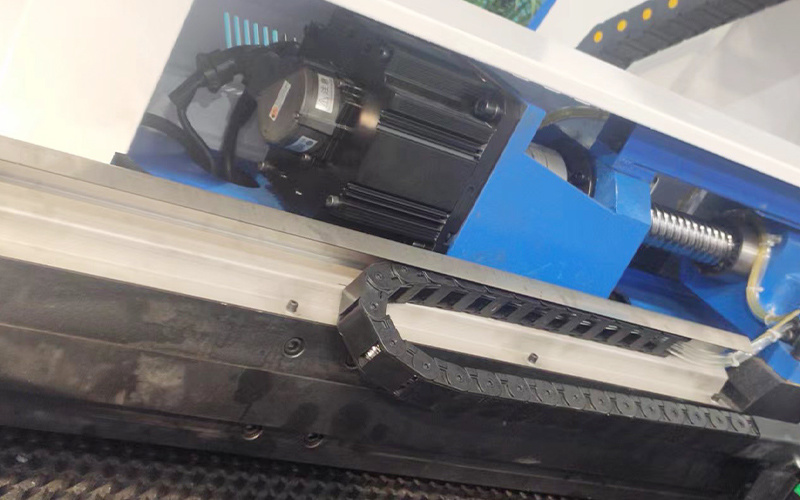

Servo Motor/Stepper Motor



Aapplication:

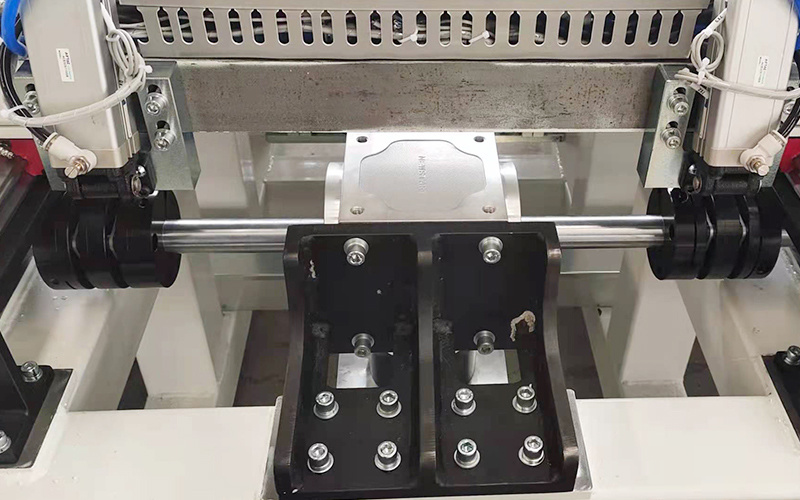

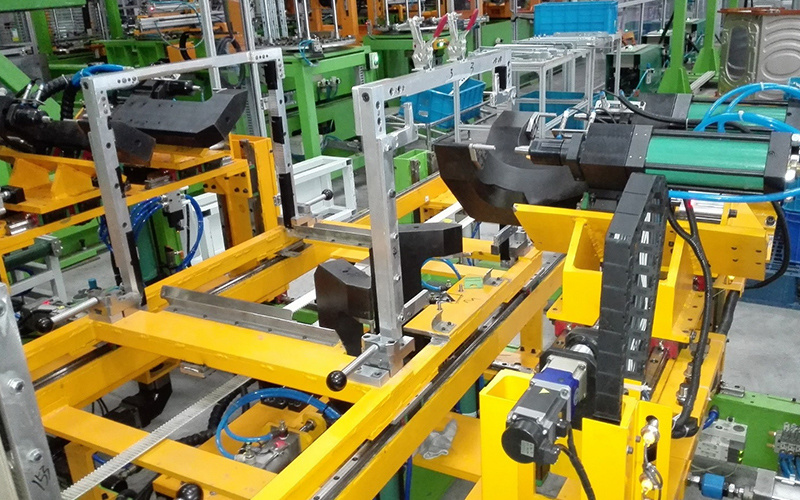

CNC lathes, machining centers, high-speed drilling and tapping centers, walking machines, linear modules, semiconductor equipment, printing machinery, packaging machinery, paper processing machinery, trademark processing machinery, textile machinery, sorting machinery, automation equipment, multi-joint robots, motion Control platform, photovoltaic equipment (frame transplanter).
