Drum type gear coupling (GEAR series)

Category:

Drum Gear Coupling

  • Product Description

    product overview

    The Kunshan Haozong drum type gear coupling series products are all metal couplings. Through the unique combination of drum type teeth and flange internal teeth of Kunshan Haozong, they can ensure the transmission of sufficient torque while providing a certain degree of flexibility, thereby compensating for the alignment deviation caused by installation and equipment operation. At the same time, drum teeth can increase the meshing area, reduce local stress concentration, and thus extend the service life of drum teeth and even the entire coupling.

    Working principle

    Kunshan Hao longitudinal drum shaped gear products are suitable for low-speed, high torque, and high load applications, and can be widely used in metallurgy, mining, steel, electricity, and other fields. The GD series products of Kunshan Haozong Drum Gear Coupling meet the relevant standards of the American Gear Association AGMA, and Kunshan Haozong Transmission can also provide products that comply with DIN standards. Kunshan Hao longitudinal drum type gear coupling can provide a maximum torque transmission capacity of up to 500000Nm, with a maximum shaft diameter of up to 800mm.

    Product Features

    Kunshan Haozong drum shaped gear products can provide various structural forms to meet the needs of different occasions, such as lengthening, adding intermediate shafts, configuring dynamic discs, vertical installation, etc., which can be customized according to needs. For detailed information, please contact the personnel of Kunshan Haozong.

    Application scenarios

    General machinery, pumps, compressors, gearboxes, etc;

    Metallurgical, power, steel, dock and other occasions.

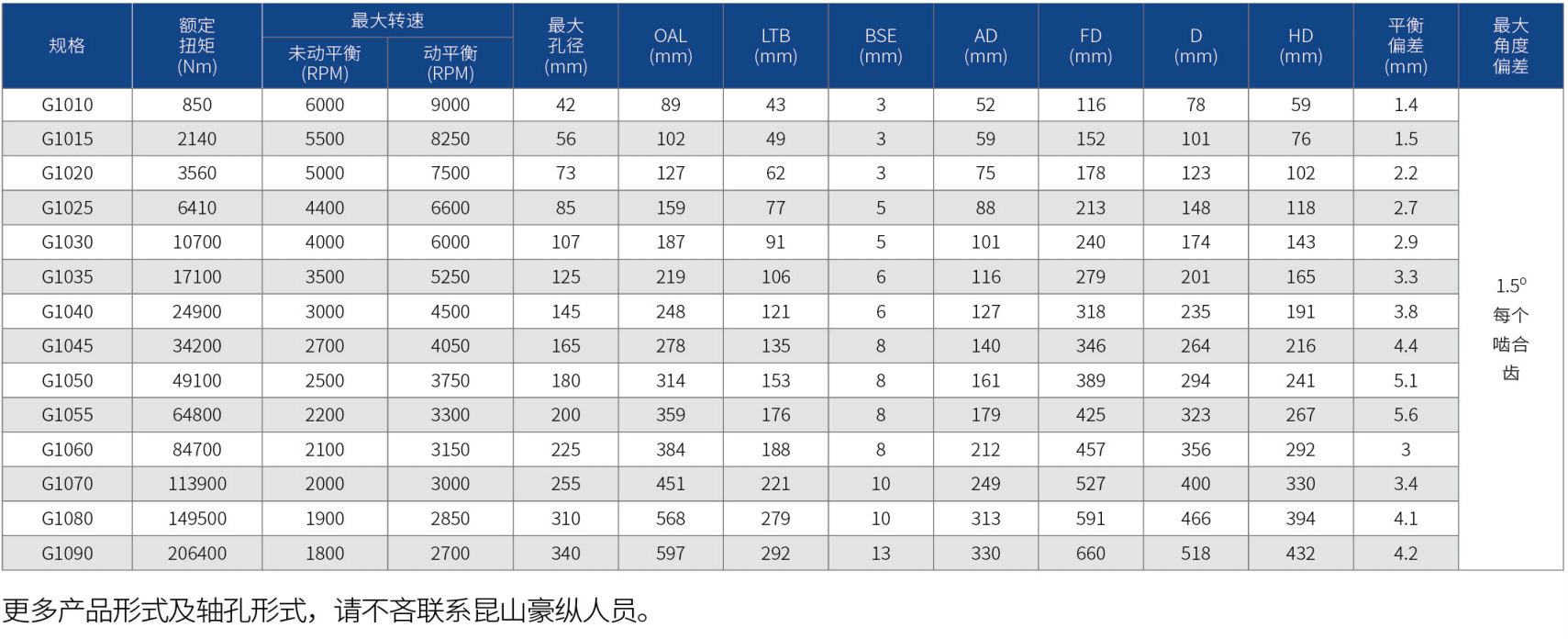

    Technical Parameter
