Snake spring coupling

Category:

Falk Flexible Coupling

  • Product Description

    product overview

    Kunshan Haozong Serpentine Spring Coupling is an efficient transmission product that combines rigidity and flexibility. It can not only transmit up to 950000 Newton meters of torque, but also effectively absorb the torque impact and vibration of the transmission system during the transmission process, compensate for deviations, thereby reducing noise and improving the overall system life.

    Working principle

    The snake shaped spring coupling is connected to the two end hubs through its spring components. The high-strength alloy spring ensures sufficient strength to transmit the corresponding torque while also having superior elasticity; The hub teeth on the axle can effectively extend the service life of the spring through a unique double U-shaped design; Die cast aluminum alloy or die forged alloy shells also greatly reduce the burden on the shaft while ensuring strength. Therefore, Kunshan Haozong snake shaped spring couplings are widely used in industries such as mining, ports, docks, cement, grain and oil.

    Product Features

    Kunshan Haozong Serpentine Spring Coupling is a standard product that complies with the American Industrial System 1000 series, and its structure, size, and performance all meet the relevant standard requirements.

    Kunshan Haozong Serpentine Spring Coupling has various structural changes and installation methods, which can fully meet the different installation and usage requirements of various customers.

    Application scenarios

    General machinery, pumps, compressors, gearboxes, etc

    Equipment that requires good buffering, such as conveying equipment, crushing equipment, and mixing equipment.

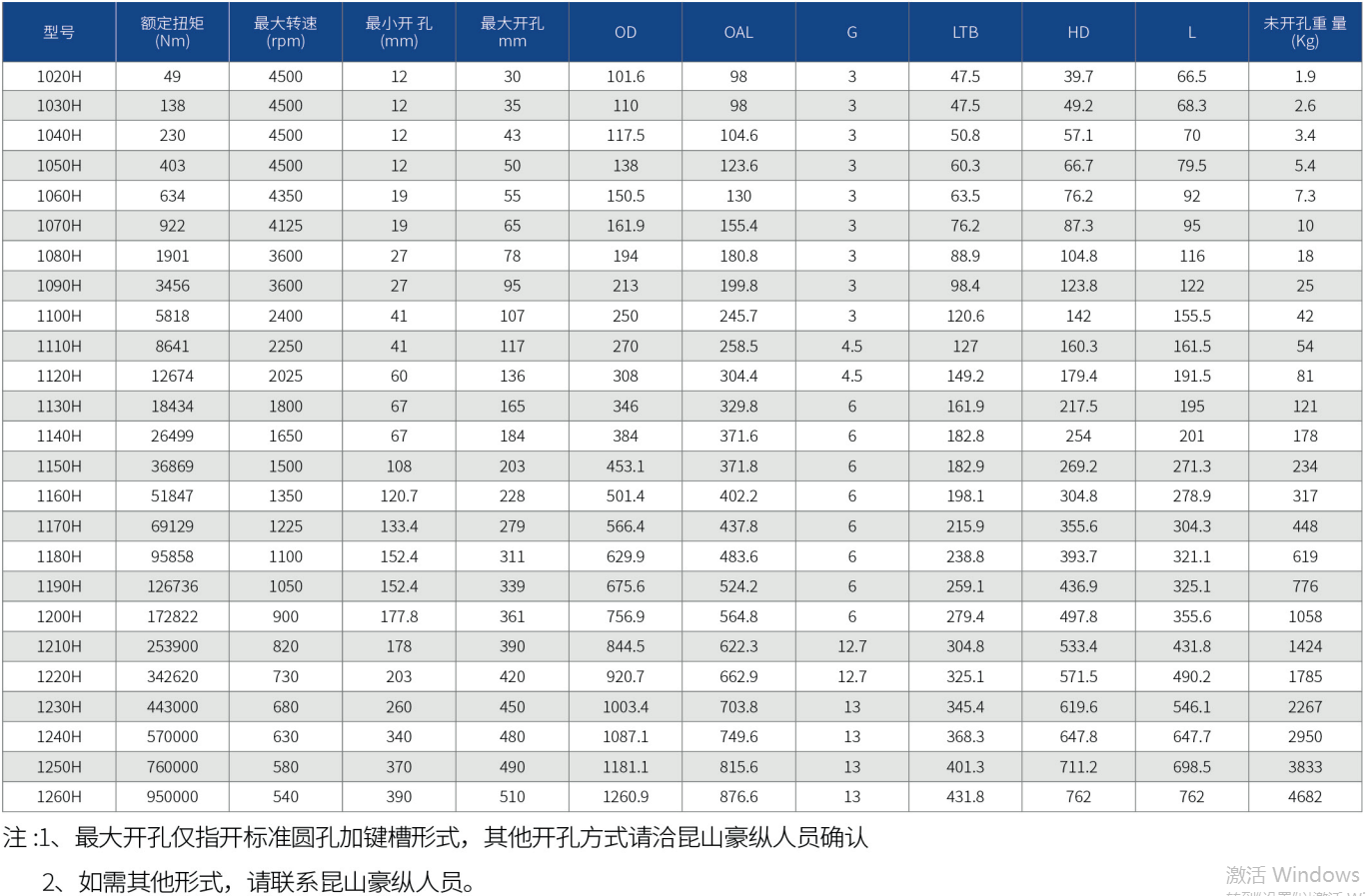

    Technical Parameter
