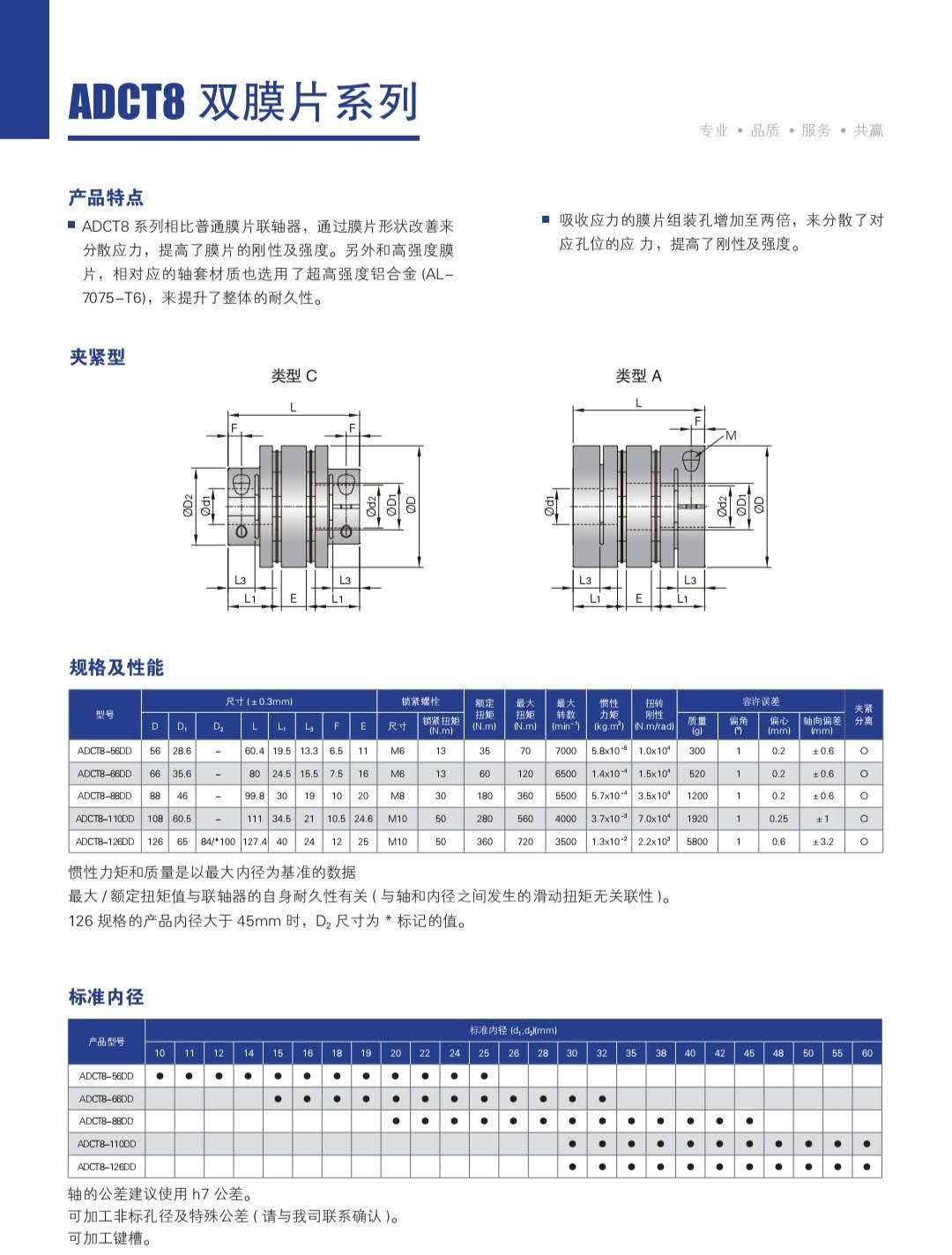

ADCT8-DD Double Diaphragm Coupling

Category:

ADC Precision Coupling

  • Product Description

    High rigidity: high torsional rigidity allows it to accurately control the rotation of the shaft and achieve high precision control

    Backlash-free: the power transmission is carried out by friction joint, backlash-free and suitable for ultra-high precision control

    Low inertia: it is directly connected to the shaft with high-strength aluminum alloy, with ultra-low inertia. It is suitable for high acceleration operation

    Simple and firm connection: connect to the shaft in single clamping mode. The clamping hub is impact and shaking resistant, and can be connected firmly to greatly shorten the assembly time. Center with special clamp to ensure extremely high concentricity.

    Rich options: options like tapered shaft, full-length designation and keyseating are provided. Each option can also be combined with each other to provide specifications that meet your demands

    Drive: servo motor, stepping motor and detector encoder





    Main application: cartesian robot, belt drive, machine tool, Index platform, logistics equipment and servo punch
