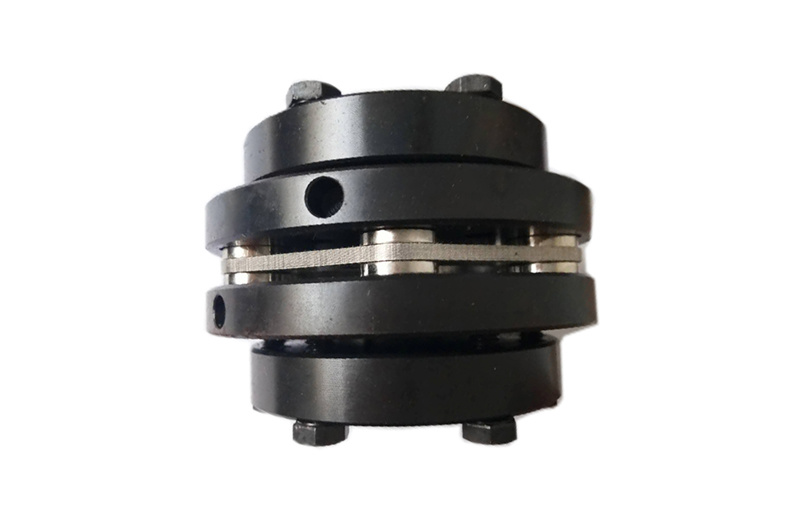

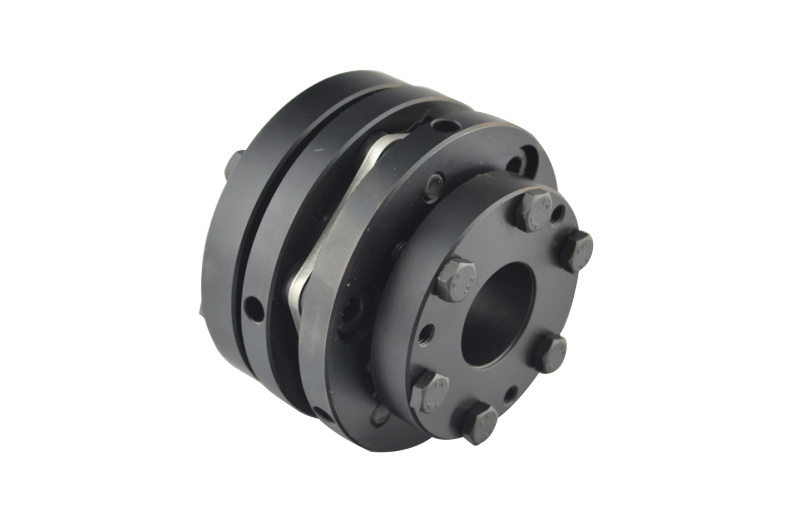

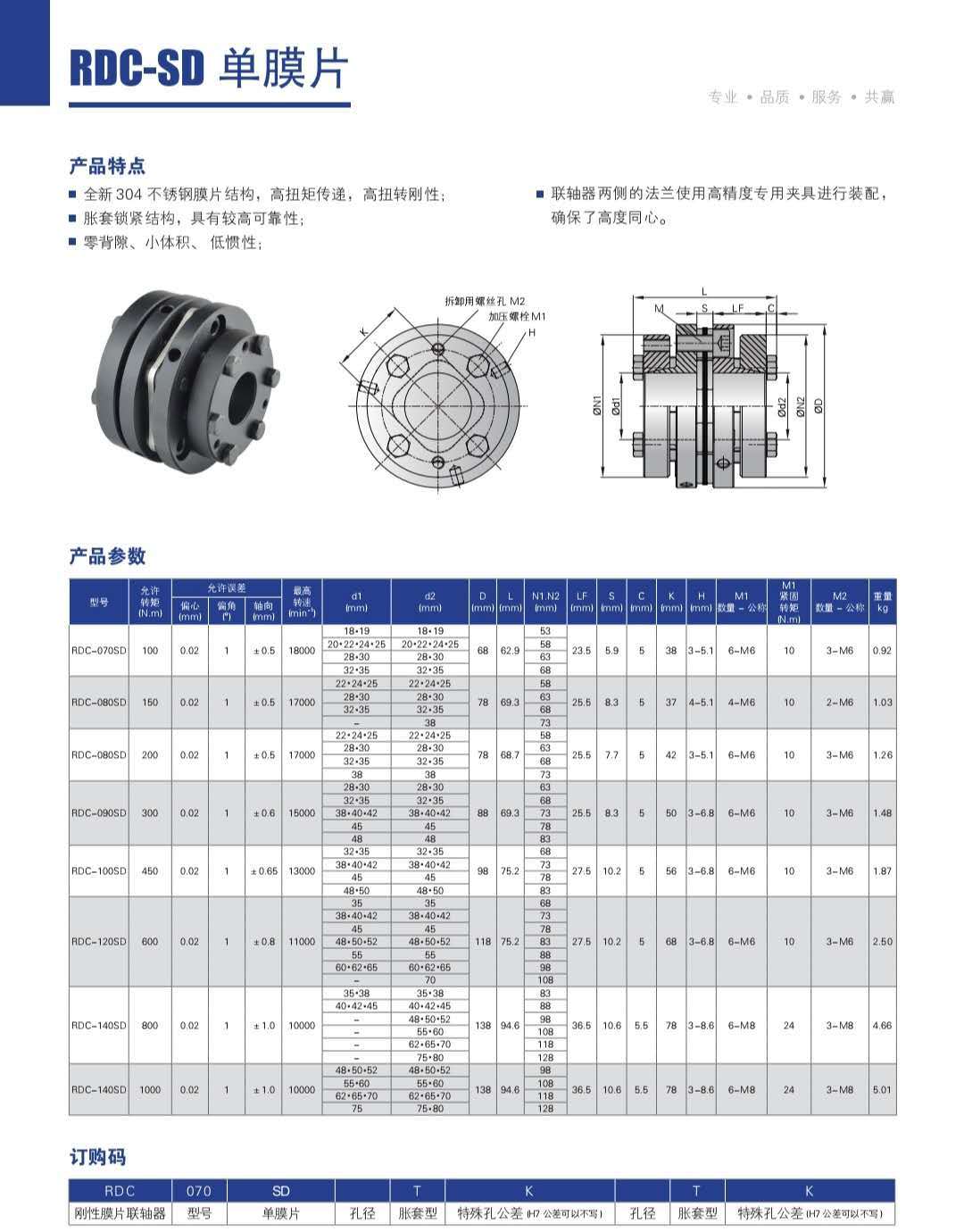

RDC-SD Single Diaphragm Coupling

Category:

RDC Precision Diaphragm Coupling

  • Product Description

    The product is a leaf spring coupling whose main body is made of steel, with high torsional rigidity, precise shaft rotation and ultra-precise control, and is suitable for ordinary feed shaft. There are two types of couplings available: high rigidity single-element type and flexible double-element type (configured through the separator).

    High transfer torque and high reliability: the newly designed leaf spring is thoroughly analyzed by new finite element. It can achieve large level of transfer torque in similar products, response to harsh operating conditions, and achieve excellent reliability in a high level

    Low inertia: by achieving high transfer torque, the coupling size is minimized. The inertia can be greatly reduced by keeping the torque constant and choosing products with small size.

    High rigidity & high flexibility: the rigidity is increased by adopting newly designed leaf spring. There are two types available: single set of high rigidity RDC-SD leaf spring and double sets of high flexibility RDC-DD leaf spring interlinked with intermediate. Use according to application

    Drive: servo motor

    Application: CNC machine tool, machining center, surface mount machine and packaging machinery
