AC-VSK Coupling

Category:

German REICH Elastic Coupling

  • Product Description

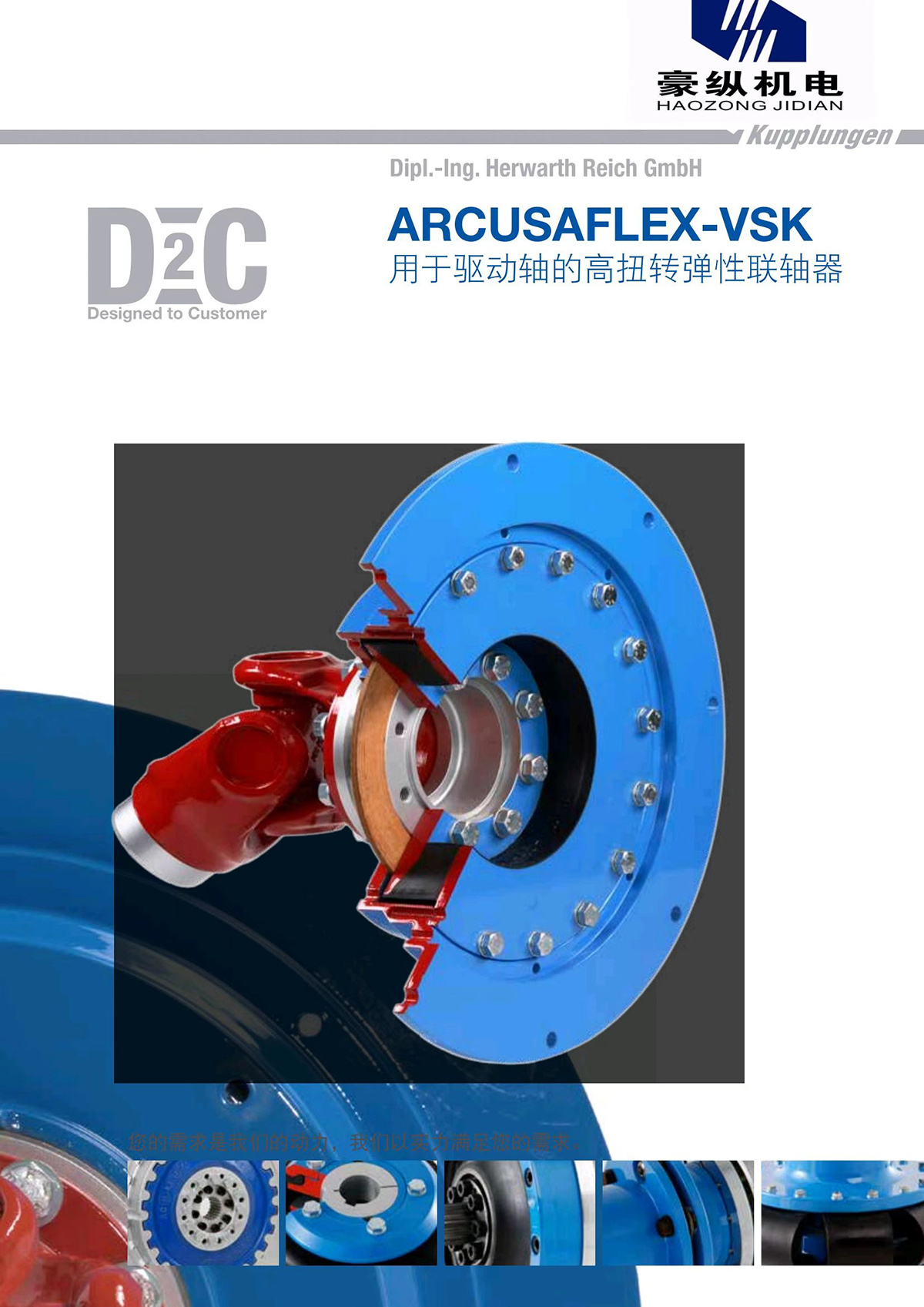

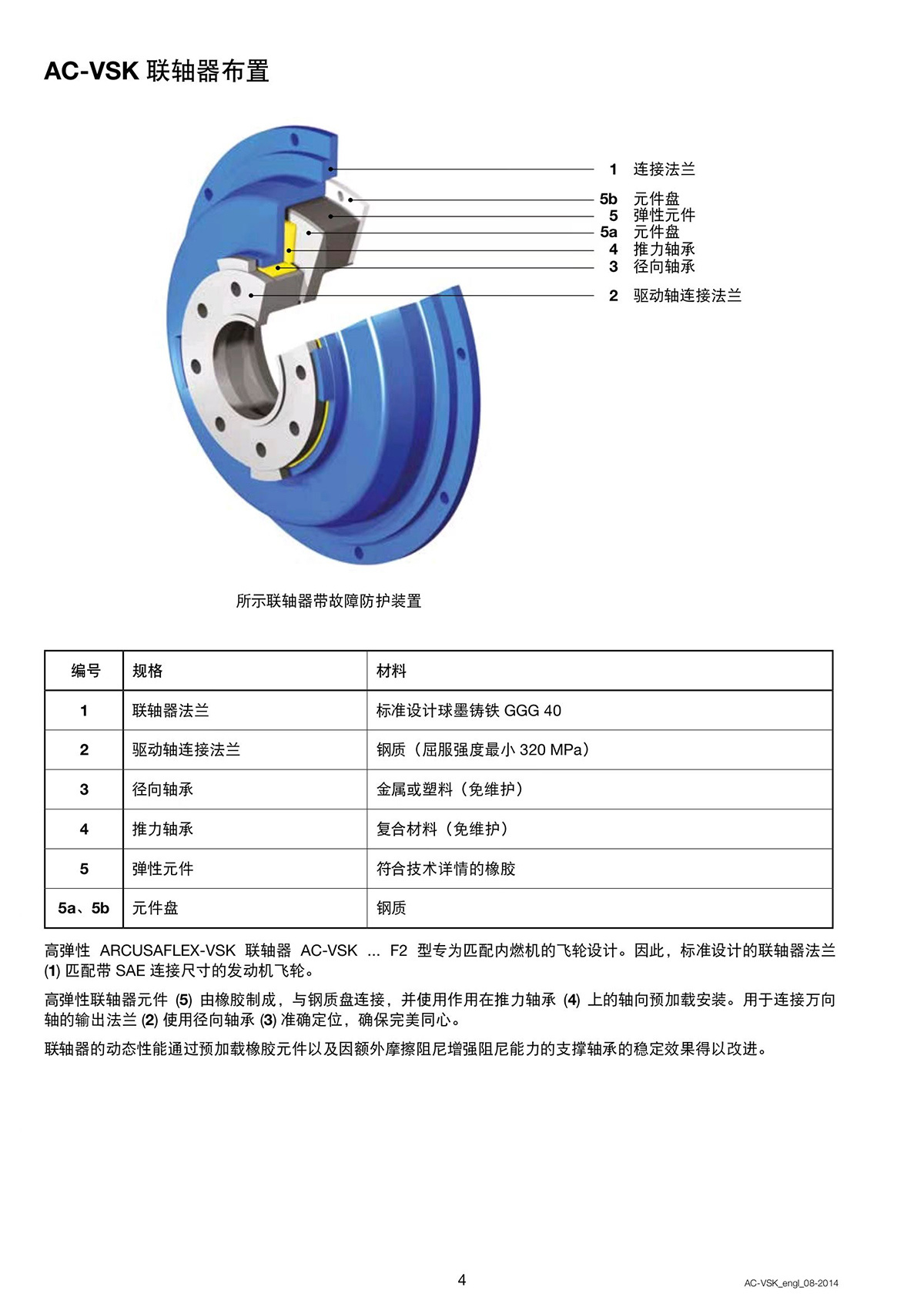

    ARCUSAFLEX-VSK: high torsional elastic coupling for drive shaft

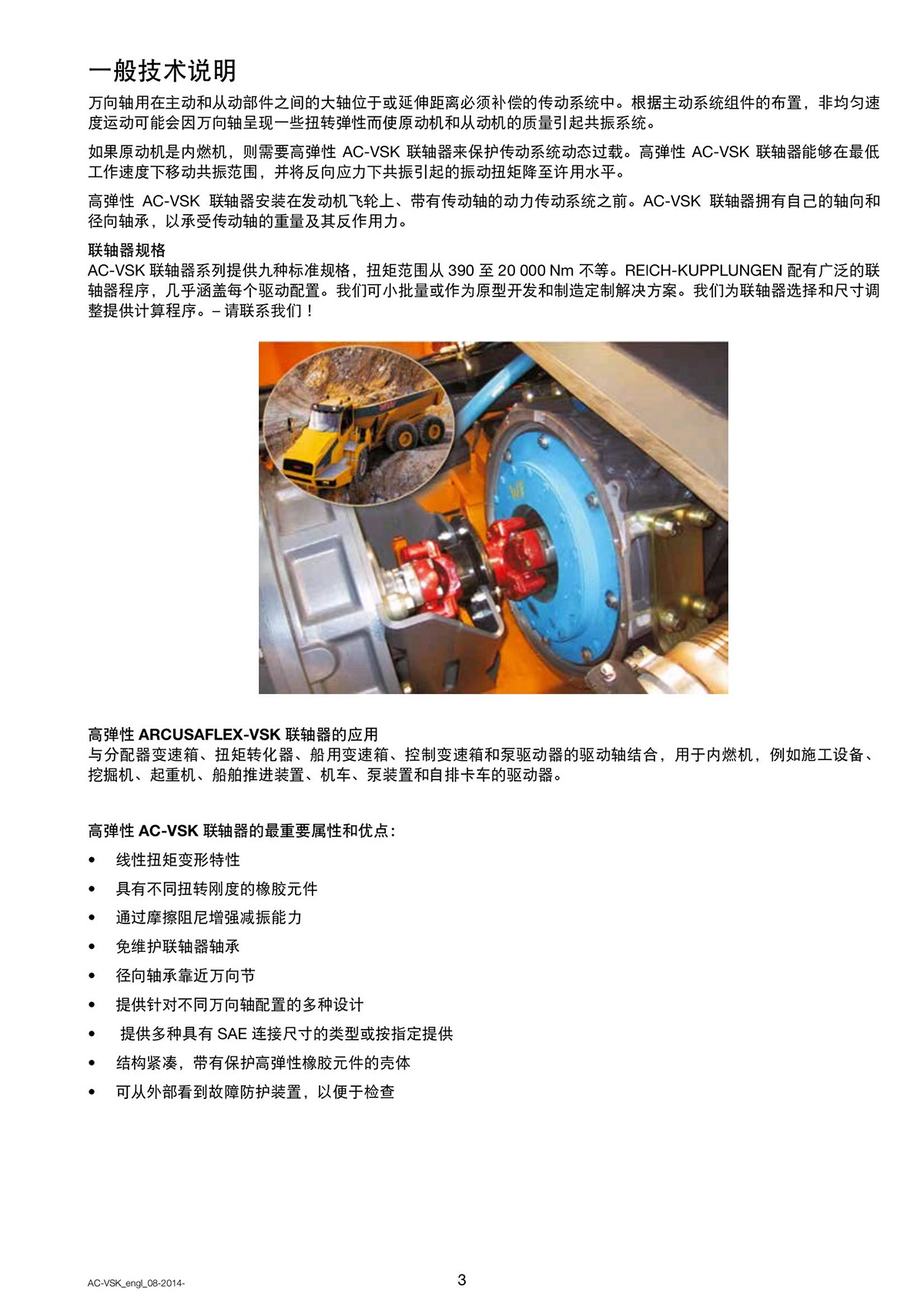

    In a transmission system, if there is a large shaft deviation or jumper spacing between the drive side and the output side, a cardan shaft is required.



    Specification

    • -40℃ to 95℃
    • 390 Nm to 20000 Nm
    • High-elastic U joint coupling

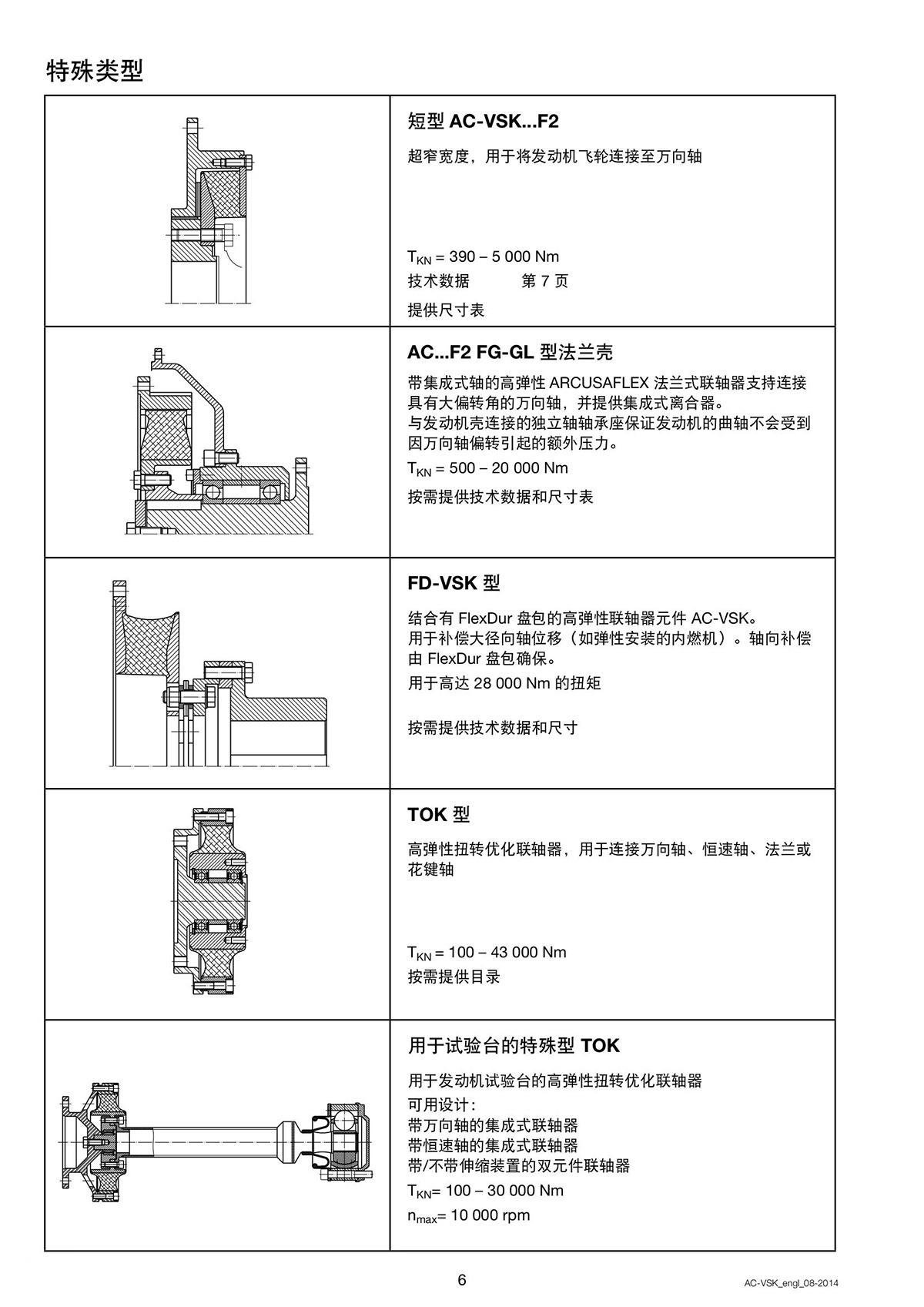

    • High-elastic compact U joint coupling with cardan shaft



    Advantages

    • Linear torsional characteristic
    • Provide elements with different torsional spring stiffness
    • Damping performance improved by frictional damping
    • Maintenance-free coupling bearing
    • Radial bearing closed to cardon link
    • Various structures for all cardan shaft models
    • Various SAE connection sizes, or refer to preset parameters
    • Compact structure, high-elastic element protected by housing
    • Visible failure protection device
