RCT Coupling

Category:

German REICH Elastic Coupling

  • Product Description

    RCT is a torsionally rigid maintenance-free flange coupling for pump drives.

    RCT couplings provide an excellent drive solution for connecting diesel engines to hydraulic pumps. The torsionally rigid design of the RCT coupling is able to push critical resonances above the operating speed range.



    Advantages

    • High torsional stiffness for subcritical operation
    • Elastomeric rubber coating reduces vibration and torsional shock
    • High torque capability and breakdown resistance
    • -25°C to +100°C ambient temperature
    • Compact, robust and maintenance-free
    • Axial plug-in structure for easy installation
    • Backlash-free hub connection
    • Axial offset, radial offset and angular displacement compensation
    • Various meshing options for connecting pump shafts
    • Pump seat flanges are suitable for almost all installation situations

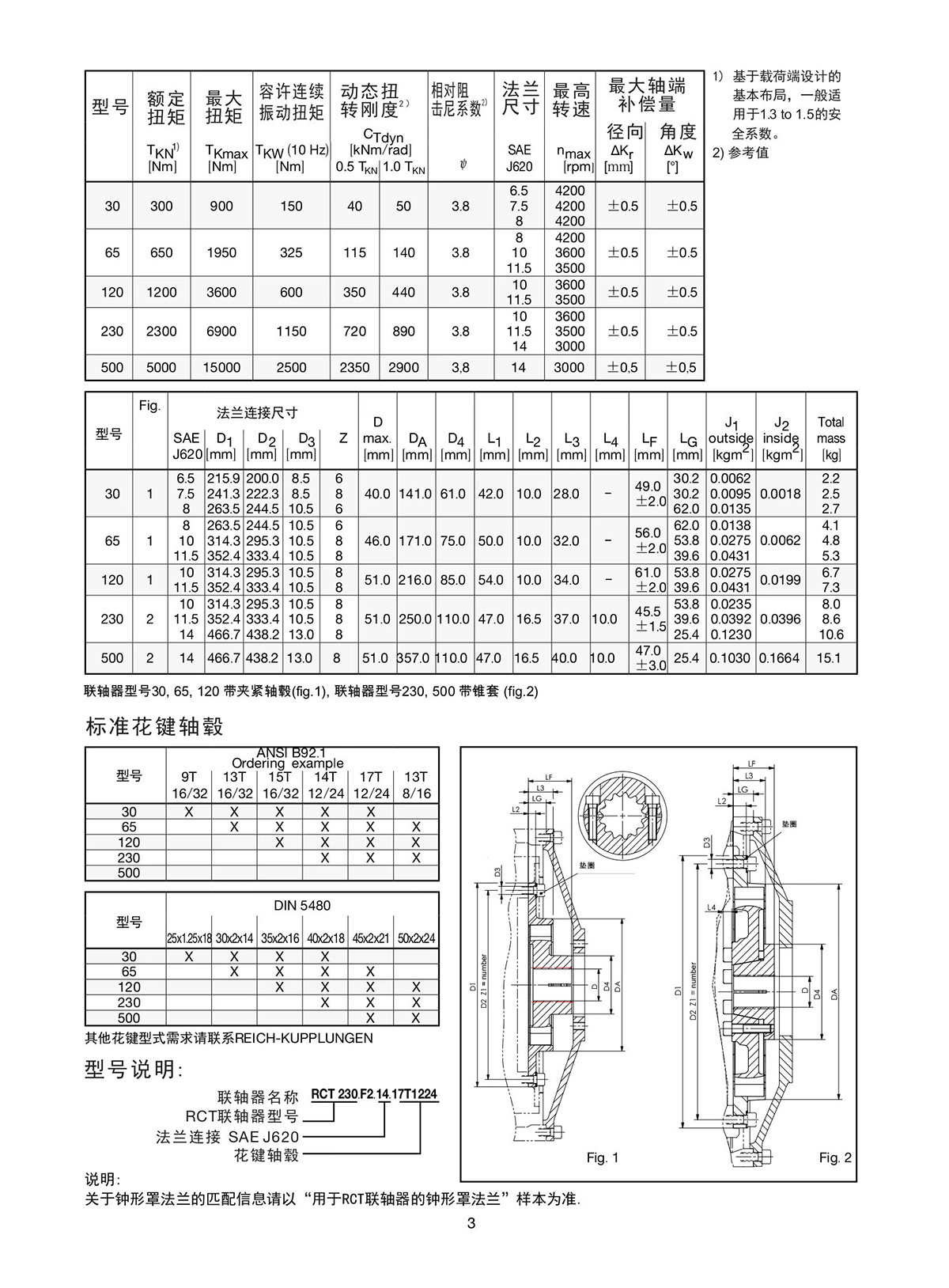

    Specification

    • -25℃ to 100℃
    • 300 Nm to 5000 Nm
    • Torsional Rigid Flange Couplings
