TOK Coupling

Category:

German REICH Elastic Coupling

  • Product Description

    TOK highly elastic coupling for elastically mounted engines

    The high torsional elastic TOK coupling is specially developed for applications requiring very low torsional stiffness. In addition, the product is particularly suitable for compensating axial and radial displacements on spring-mounted drives.



    Advantages

    • Direct connection to SAE J 620, other flywheels can also be connected on request
    • Axial, radial and angular misalignment compensation
    • Installation length variable
    • No gaps, no maintenance
    • Increased torque capacity with 2 elements
    • for maximum speed
    • Optional high-strength aluminum for lightweight construction

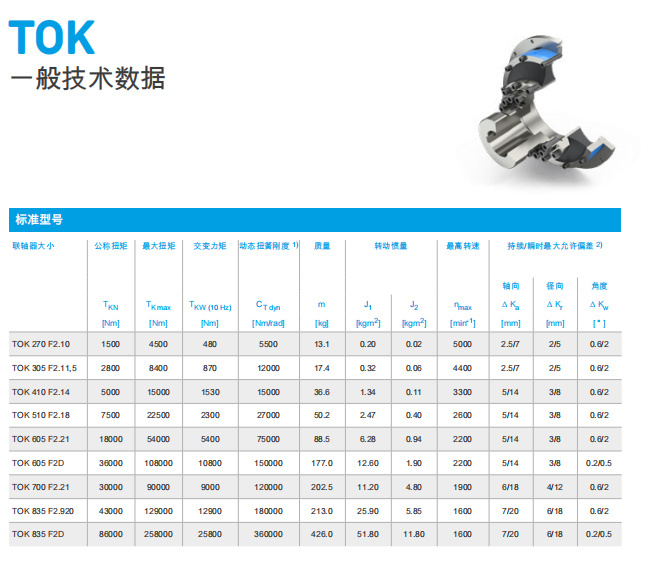

    Specification

    • -40℃ to 80℃
    • 1500 Nm to 86000 Nm
    • Highly elastic couplings for elastically mounted engines
