S Series Eccentric Coupling

Category:

Eccentric Coupling

  • Product Description



    The standard series offers a combination of performance, compact design and mass offset options. The standard series is applicable to nominal torque up to 2,875 Nm and radial offset up to 115 mm.



    Schmidt Eccentric Coupling S Series

    Operating Principle

    Schmidt coupling is a compact coupling used to precisely transmit torque from a radial offset shaft. Within the allowable rotation range, the misalignment of the shaft can be changed as needed, either at rest or during operation under load. The angle synchronous transmission can be permanently guaranteed regardless of the shaft offset. An - drive permanent synchronous operation, with no phase shift.



    Standard S series - Combination of performance, compact and mass offset options

    There are 3 couplings in each layer of standard series couplings. For most coupling sizes, we have offered these couplings in 2 different lengths to replace the displacement value. The standard series coupling offers the combination of displacement capacity, torque transmission and compact design.

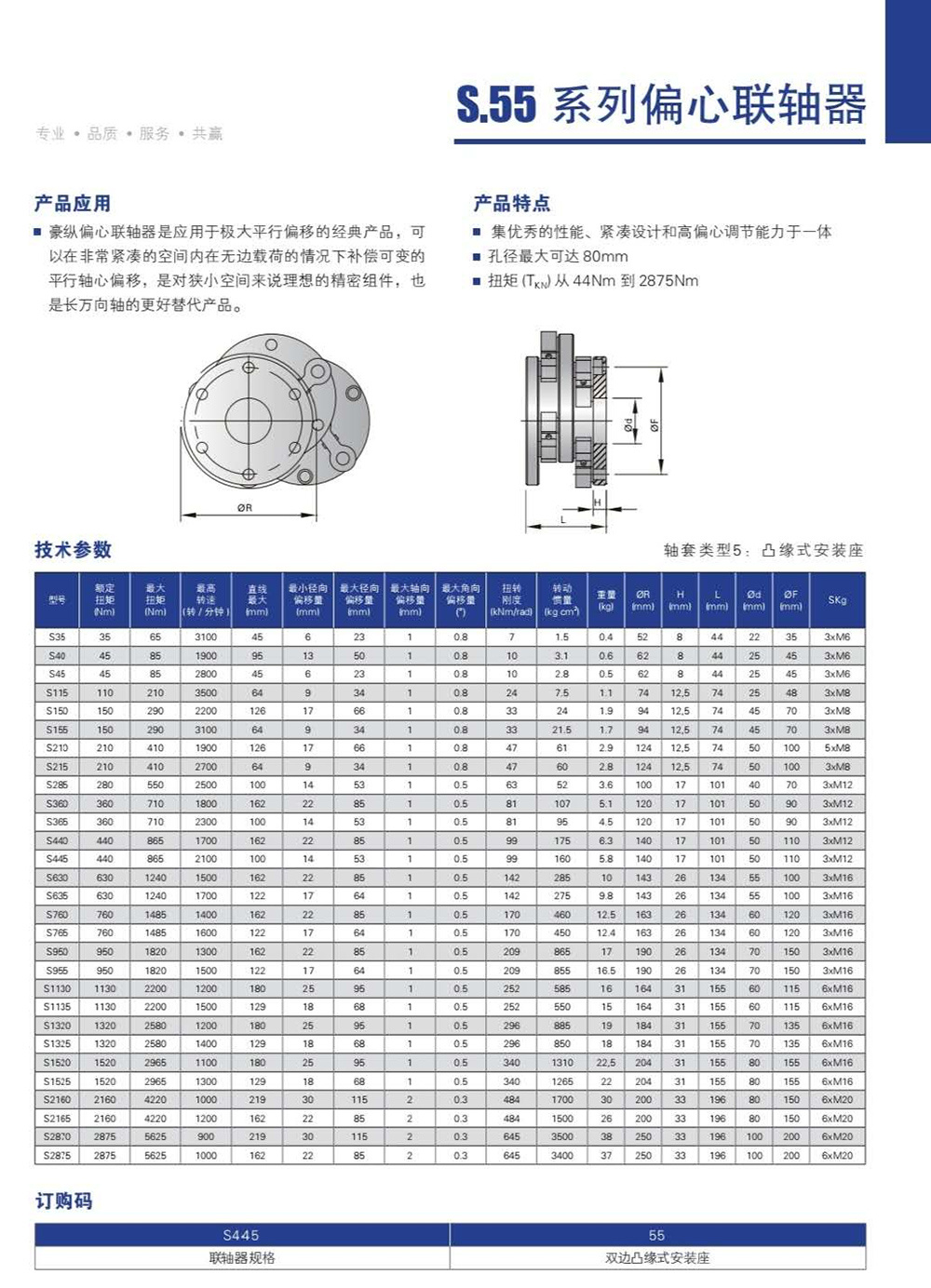

    Standard Series

    It is applicable to nominal torque up to 2,875 Nm and radial offset up to 115 mm.



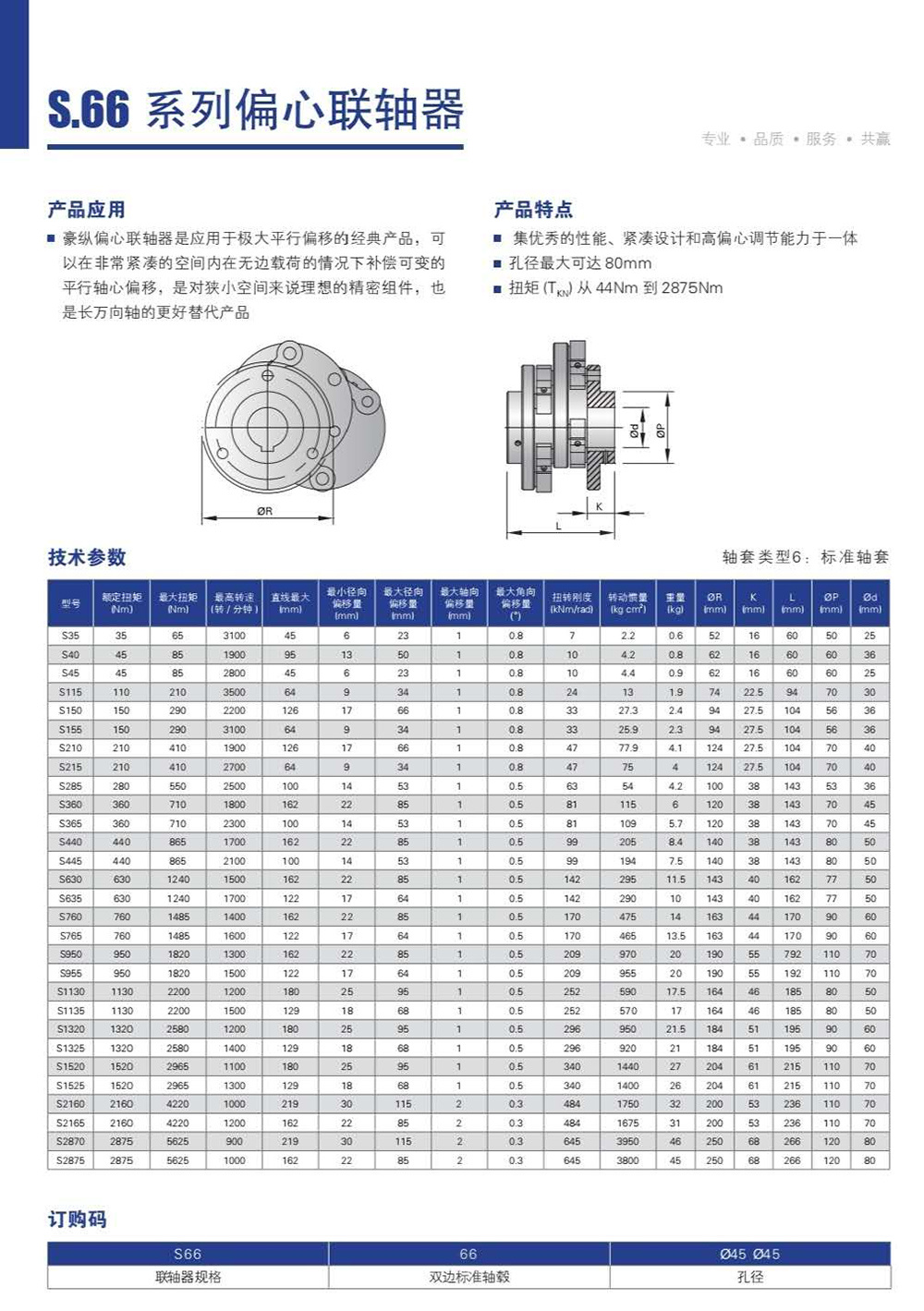

    Different hub shape combinations as needed

    There are 3 different hub shapes available. The clamp hub design provides gapless shaft hub connection, and provides high friction torque for frequent impact torque application. The flange installation version can be quickly integrated into customer specific additional components. And the hub version can be used for shape-fit torque transmission through keyseat and positioning screw.

    Different hub shapes can be combined as needed to suit their individual requirements.



    Clamp hub shape 3

    It is an ideal hub design suitable for applications with frequent peak torque and impact load. The high friction torque of the clamp hub design ensures the safe and gapless torque transmission.

    The version with clamp hub can be applied to shaft diameter of 15-80 mm, depending on the size.
