V Series Eccentric Coupling

Category:

Eccentric Coupling

  • Product Description



    The V series provides additional offset capacity in compact design. Offset Plus series is applicable to nominal torque up to 3,830 Nm and radial offset up to 275 mm.



    Schmidt Eccentric Coupling V Series

    Operating Principle

    Schmidt coupling is a compact coupling used to precisely transmit torque from a radial offset shaft. Within the allowable rotation range, the misalignment of the shaft can be changed as needed, either at rest or during operation under load. The angle synchronous transmission can be permanently guaranteed regardless of the shaft offset. An - drive permanent synchronous operation, with no phase shift.



    Offset Plus V series - additional offset capacity in compact design

    There are 3 ultra-long couplings in each layer of Offset Plus series couplings. Compared with standard series, these could ensure the increase in offset capacity and maintain the size technical data - it is especially suitable for applications that requires high offset under restrictive installation conditions.

    Offset Plus series is applicable to nominal torque up to 3,830 Nm and radial offset up to 275 mm.



    Different hub shape combinations as needed

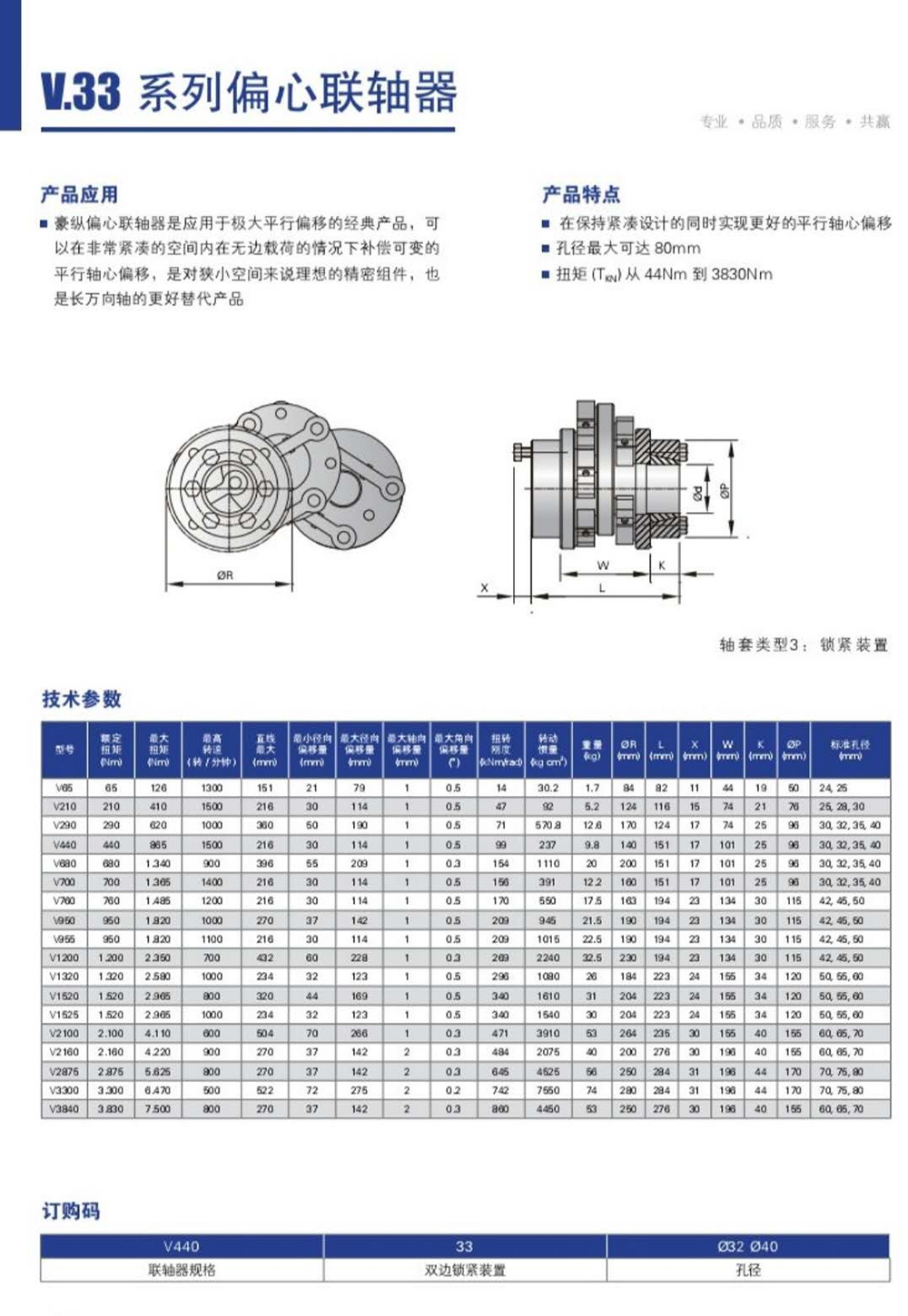

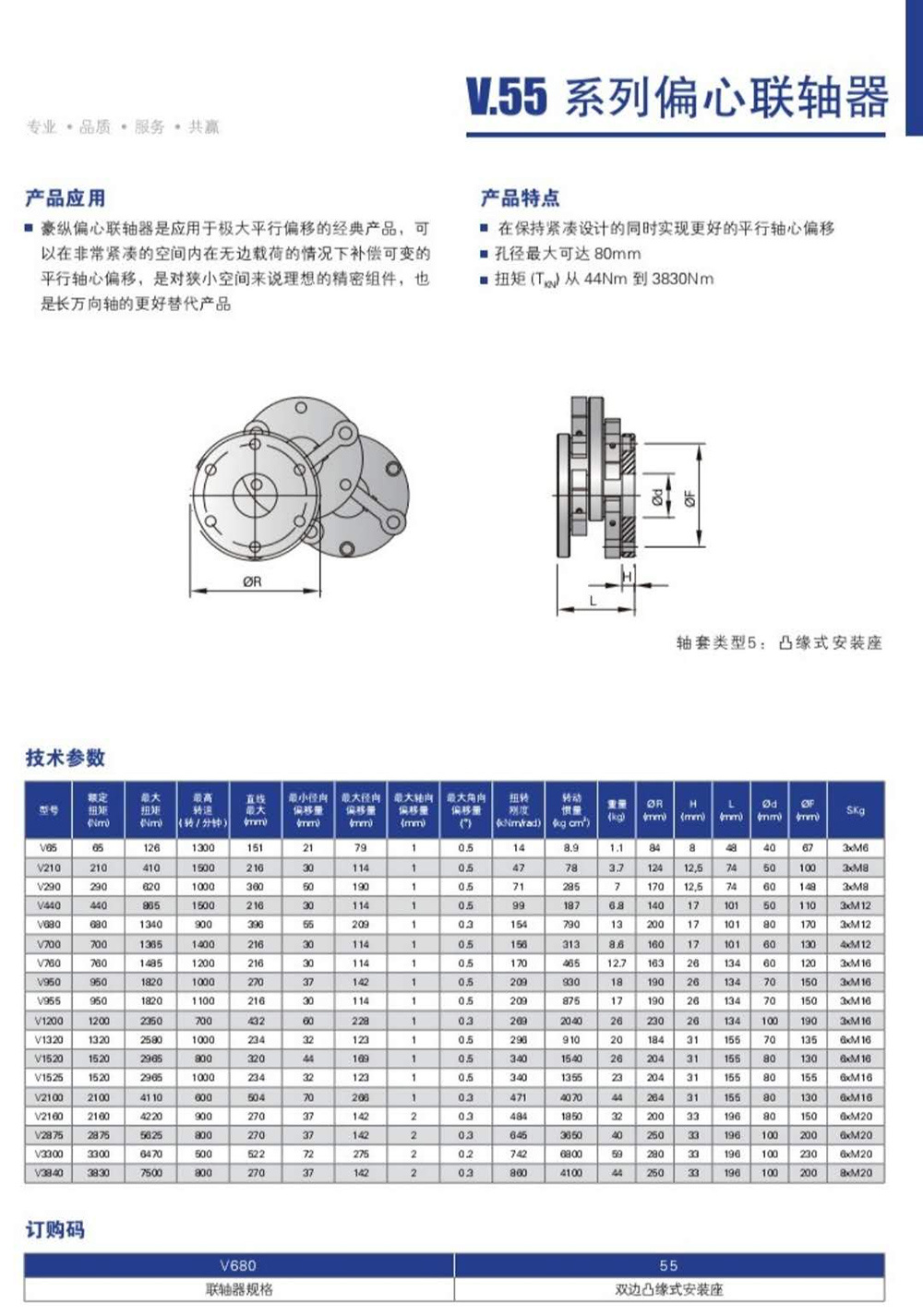

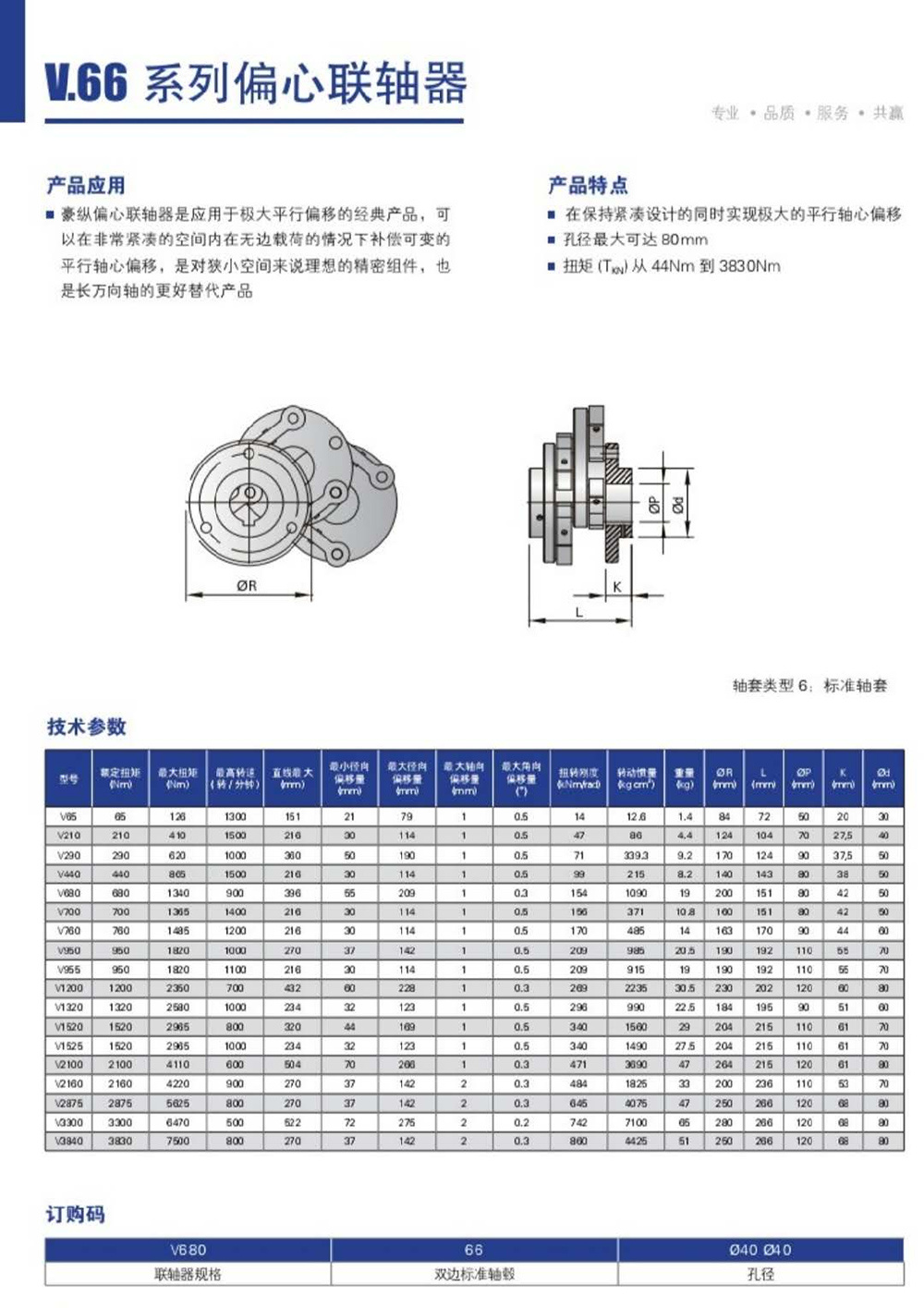

    There are 3 different hub shapes available. The clamp hub design provides gapless shaft hub connection, and provides high friction torque for frequent impact torque application. The flange installation version can be quickly integrated into customer specific additional components. And the hub version can be used for shape-fit torque transmission through keyseat and positioning screw.

    Different hub shapes can be combined as needed to suit their individual requirements.
