ETP-HYCON Tightening Sleeve

Category:

Hydraulic Tightening Sleeve

  • Product Description

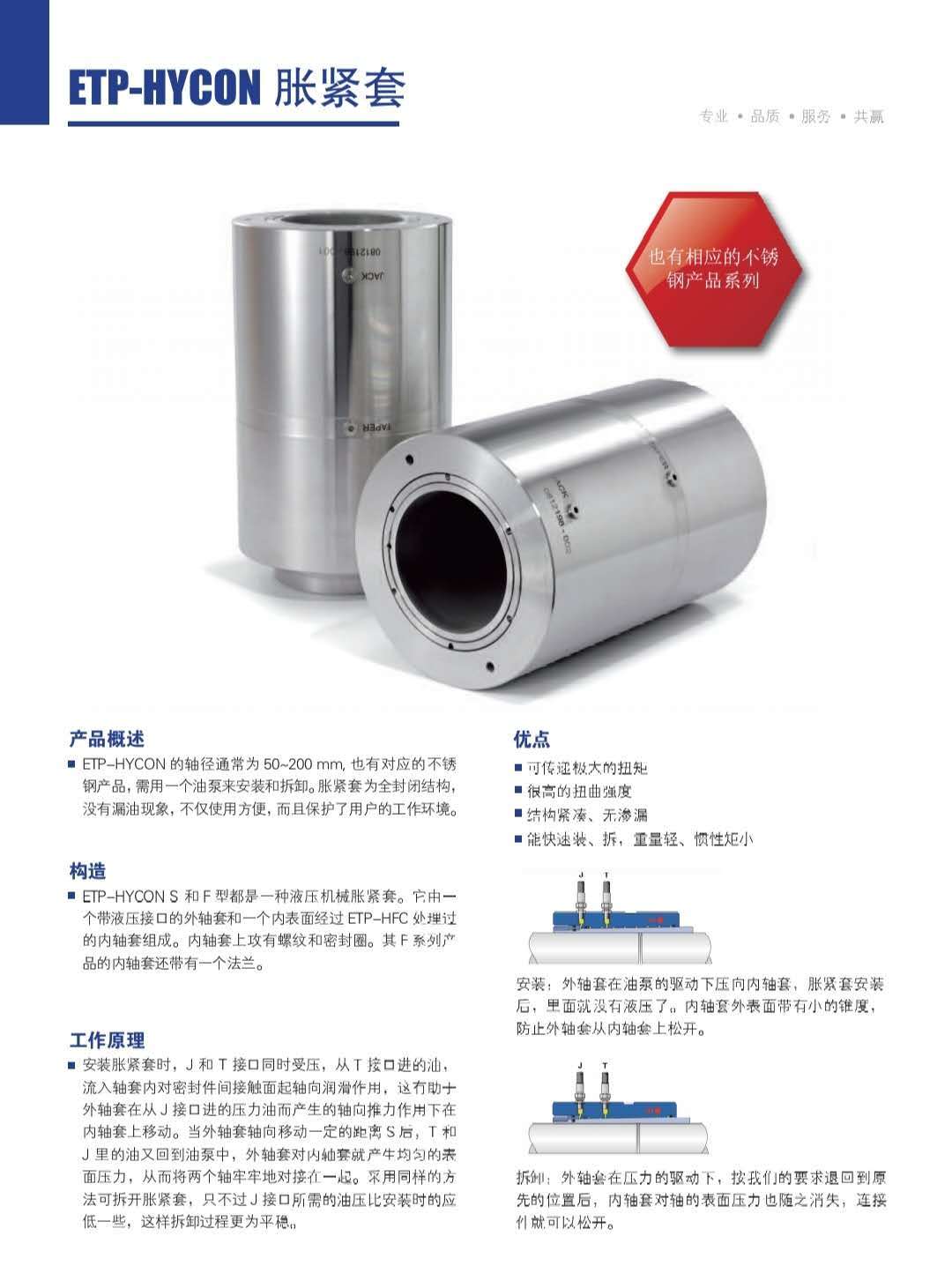

    · ETP-HYCON is a hydraulic-machinery coupling, whose standard series shaft diameter is 80 - 200 mm. There are also corresponding stainless steel products. The oil pump is used to install and remove. The coupling is fully enclosed structure, without oil leakage. It is easy to use, but also protects users' working environment.

    · ETP-HYCONS and SX are ETP-HYCON without flange. And the axial length of SX type is longer than that of S type, and the torque transmitted is much larger than that of the latter. Both series products have obtained DnV certificate and are applicable for marine industry.

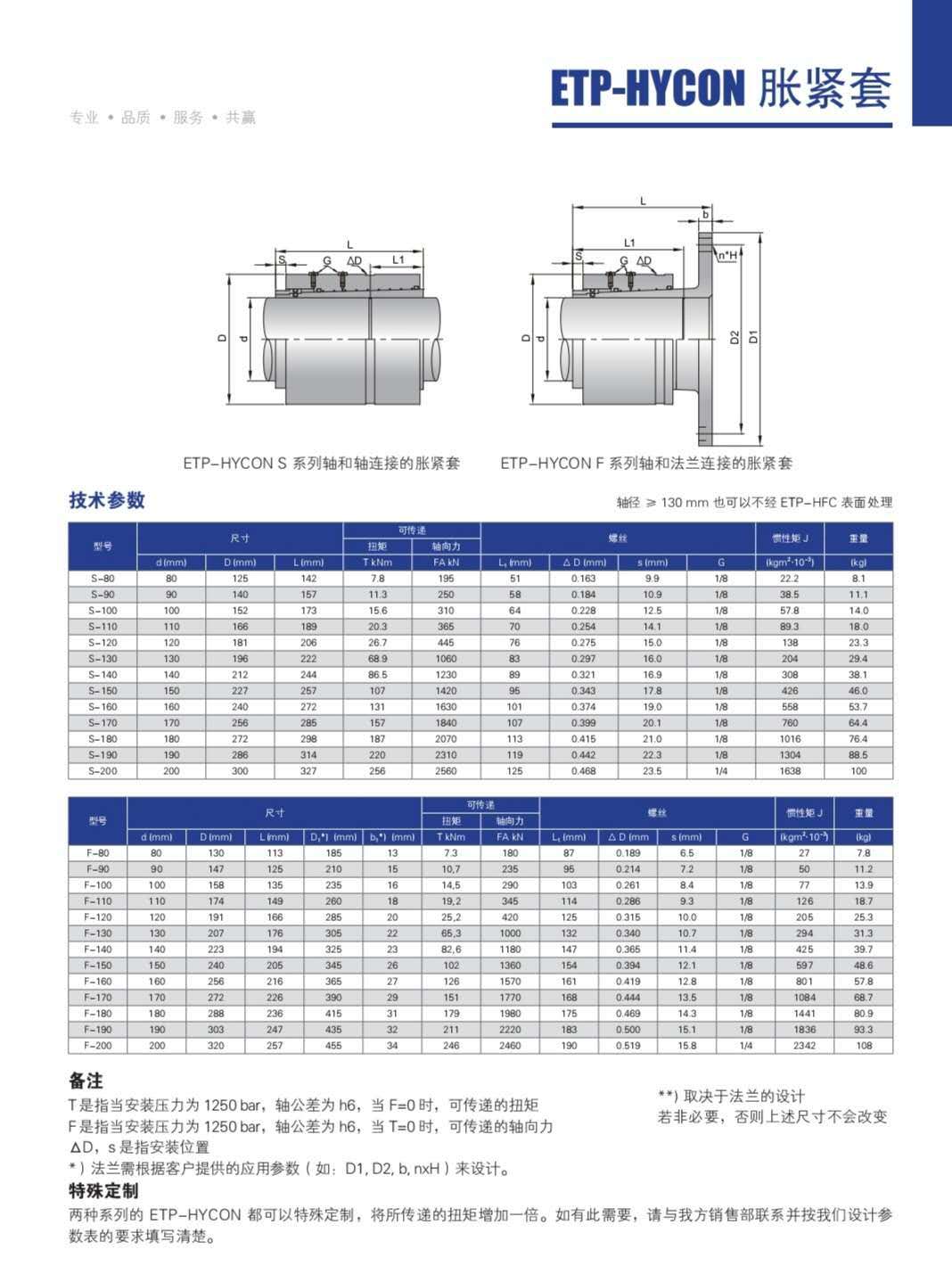

    Structure: the ETP-HYCON S and SX hydraulic-machinery couplings are composed of an outer shaft sleeve with hydraulic interface and an inner shaft sleeve whose inner surface is processed by ETP-HFC. The outer surface of the inner shaft sleeve is provided with a thread and a sealing ring. When the outer shaft sleeve moves axially on the inner shaft sleeve, there is no leakage in the system.
