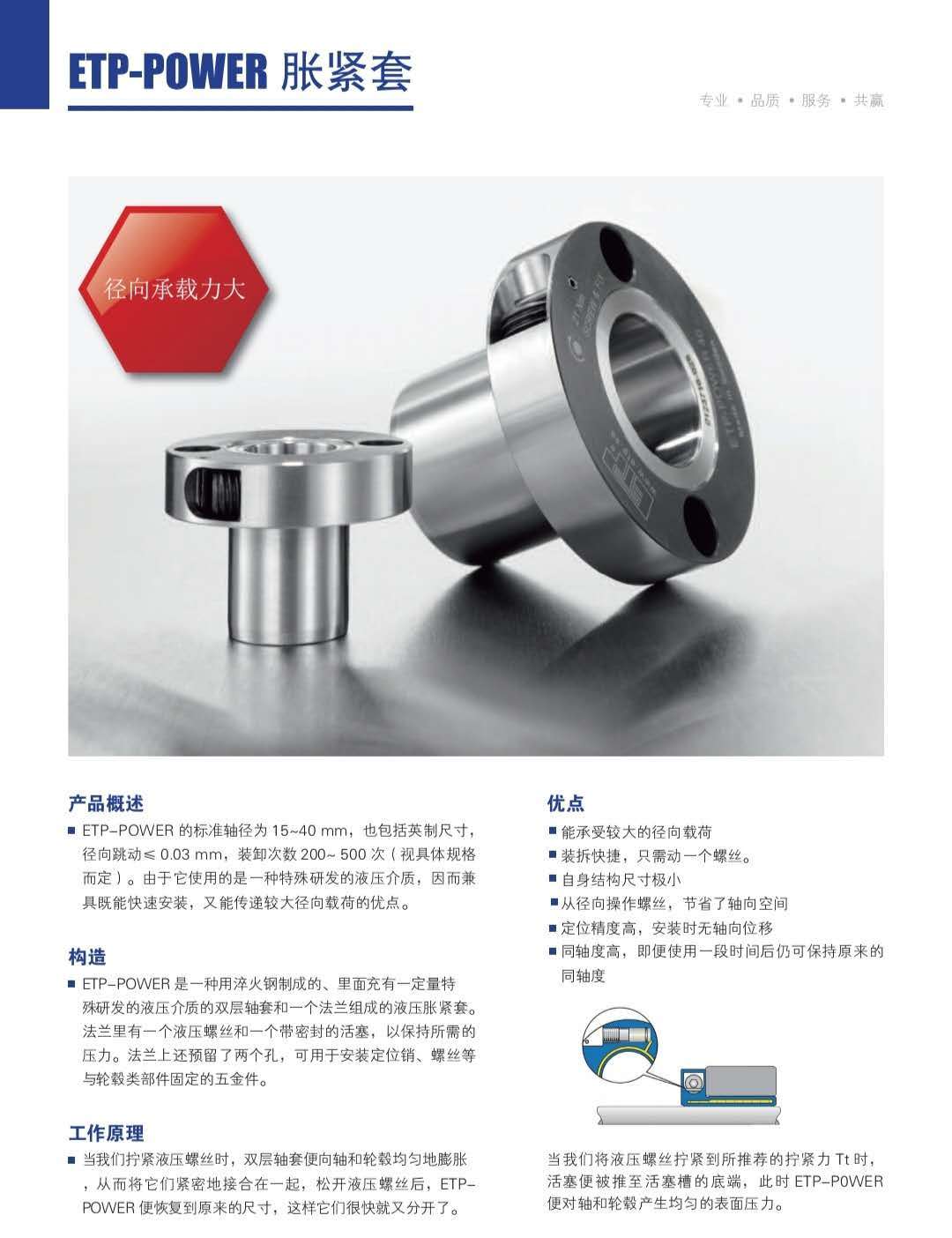

ETP-POWER Tightening Sleeve

Category:

Hydraulic Tightening Sleeve

  • Product Description

    The standard shaft diameter of ETP-POWER is 15 - 40 mm (including inch size), the runout is ≤0.03 mm, and loading and unloading frequency is 200-500 times (depend on the specifications). Thanks to its specially developed hydraulic medium, it is excellent in installing quickly and transmitting large radial load.



    Structure: the ETP-POWER is similar in structure to the EXPRESS and TECHNO except that its flange has two holes for axial installation which can be connected axially to the hub or other parts with bolts. It not only possesses all advantages of hydraulic tightening sleeve, such as easy to operate, precise and small structure and size, but also can bear large radial load due to its special hydraulic medium. It is the only single screw hydraulic tightening sleeve that can transmit large radial force.
