ETP-MINI Tightening Sleeve

Category:

Hydraulic Tightening Sleeve

  • Product Description

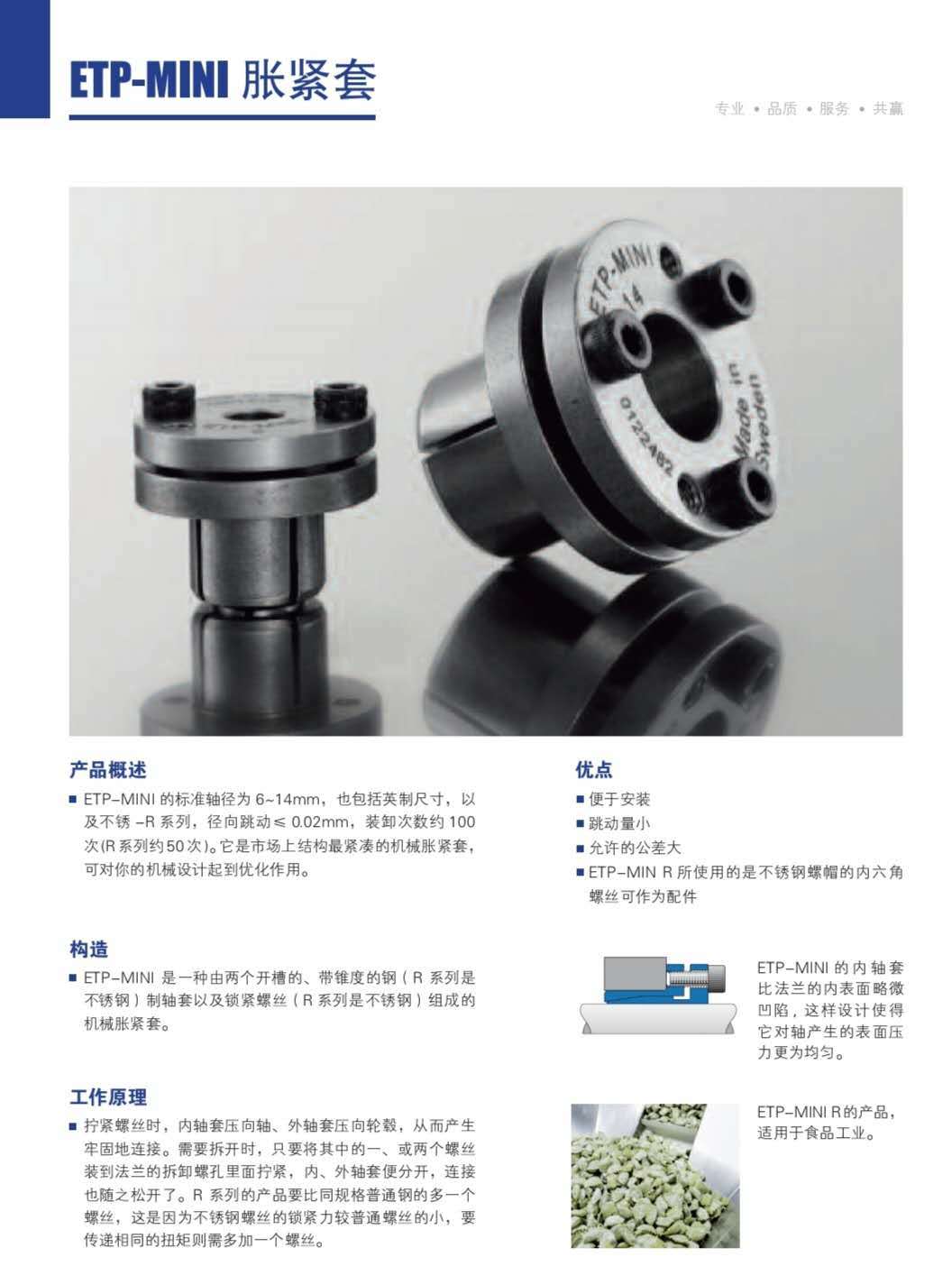

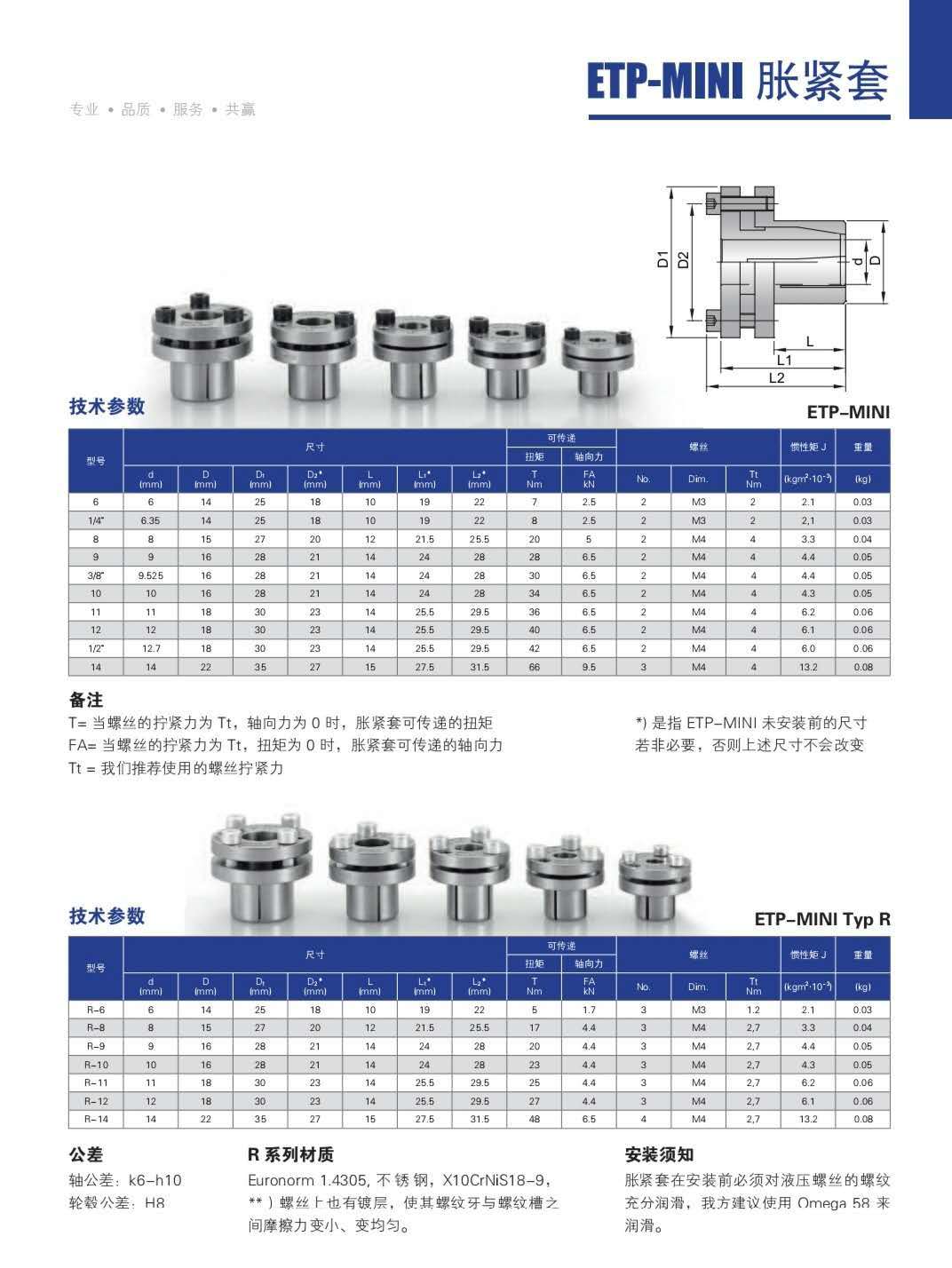

    ETP-MINI is a mechanical tightening sleeve for quick installation of small size elements. It requires adjustable and gapless connection, which is far better than key or other bolt connection. There are also corresponding stainless steel R series products for ETP-MINI to meet the demands of food and medical industry. The standard shaft diameter of ETP-MINI is 6 -14 mm, the same as that of the inch size and the stainless steel - R series. Runout: ≤0.02 mm, loading and unloading frequency: 100 times (50 times for R series). ETP-MINI R with same specifications needs more lock screws than ETP-MINI, and transmits less torque than ETP-MINI. They are tightening sleeves with most compact structure in the market, which can optimize the performance of the equipment to a certain extent.



    Structure: ETP-MINI is a mechanical tightening sleeve composed of a tapered steel (R series is stainless steel) shaft sleeve with two slots and lock screws (R series is stainless steel).
